002(A). 1132402290 [1] ELEMENT; OIL FILTER A
002(A). 1132402322 [1] ELEMENT; OIL FILTER
013. 1131600350 [1] VALVE; RELIEF
013. 1131600350 [1] VALVE; RELIEF
020. 8943967530 [1] PLUG; COOLER BODY
021(A). 8943967550 [1] GASKET; PLUG M24
021(B). 1096231790 [2] GASKET; PLUG M24
025. 1132193240 [4] NUT; CORE TO BODY M10 FLANGE
026. 1217230660 [1] CORE ASM; OIL COOLER
027. 9091645100 [4] WASHER; PL,CORE TO BODY ID=10
028(A). 1217291170 [1] GASKET; CORE TO BODY
028(B). 8943949300 [1] GASKET; CORE TO BODY
045. 1133412280 [1] COVER; OIL PORT

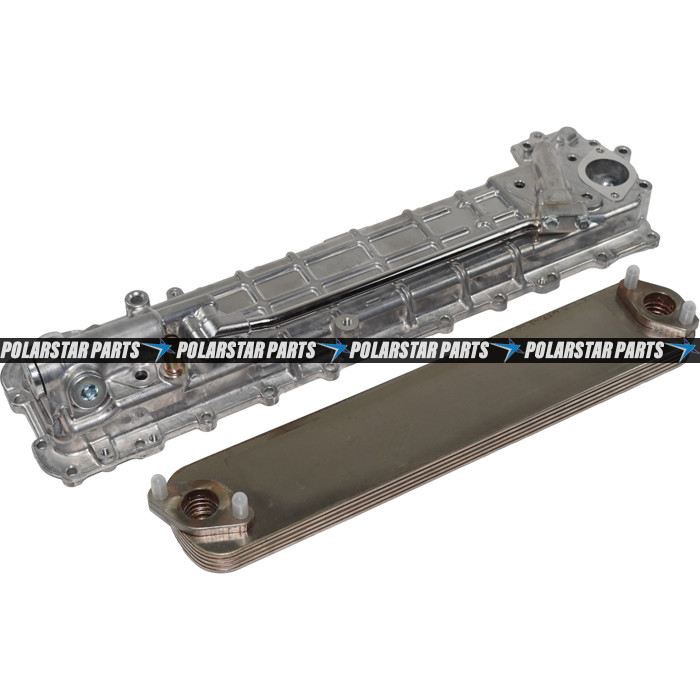

102. 1132010114 [1] COOLER ASM; OIL
103. 1090440711 [3] BOLT; OIL COOLER M8X55 FLANGE
103. 0280808250 [24] BOLT; OIL COOLER A M8X25 FLANGE
103. 0286808350 [1] BOLT; OIL COOLER M8X35 FLANGE
103. 0280808220 [24] BOLT; OIL COOLER M8X22 FLANGE
103. 0286508350 [1] BOLT; OIL COOLER M8X35 FLANGE
120. 0281810800 [4] BOLT; ADAPTER M10X80 FLANGE
120. 0281510800 [4] BOLT; ADAPTER M10X80 FLANGE
120. 0281510250 [1] BOLT; ADAPTER M10X25 FLANGE
120. 0281510900 [3] BOLT; ADAPTER M10X90 FLANGE
149(A). 8972542961 [2] PLUG PT3/4
149(B). 8943992250 [1] PLUG M14
149(C). 1096040940 [1] PLUG M10X7
170. 8943900782 [1] PIPE; BYPASS
196. 8943948152 [1] THERMOSTAT; OIL COOLER A 90 C
196. 8976009360 [1] THERMOSTAT; OIL COOLER 90 C
197. 8943992790 [1] GASKET; THERMOSTAT ID=25.7
288(A). 1096040230 [2] PLUG; OIL DRAIN M24X17
288(A). 1096040220 [2] PLUG; OIL DRAIN M24X17
288(B). 1096050250 [2] PLUG; OIL DRAIN P/T3/4
316(A). 8943993990 [2] GASKET; COVER TO BODY ID=22.1<BR>ALSO
INCLUDED IN GASKET SET(ENGINE)
316(B). 8943993390 [1] GASKET; COVER TO BODY ID=9.8<BR>ALSO
INCLUDED IN GASKET SET(ENGINE)
323(A). 1133412290 [1] COVER; OIL PORT
323(B). 8973638403 [1] COVER; OIL PORT
352. 8972221250 [1] ADAPTER; OIL FILTER
444. 8943968100 [2] GASKET; ELEMENT TO BODY
444. 1096232990 [2] GASKET; ELEMENT TO BODY ID=38.7
447. 1096235880 [2] GASKET; BYPASS PIPE
448. 0280808300 [4] BOLT; BYPASS PIPE A M8X30 FLANGE
448. 0280508300 [4] BOLT; BYPASS PIPE M8X30 FLANGE
469(A). 8943990020 [1] GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN
GASKET SET(ENGINE)
469(B). 8943992790 [1] GASKET; OIL COOLER TO C/BL
ID=25.7<BR>ALSO INCLUDED IN GASKET SET(ENGINE)
469(B). 8980454490 [1] GASKET; OIL COOLER TO C/BL
ID=25.7<BR>ALSO INCLUDED IN GASKET SET(ENGINE)
496(A). 1132010010 [1] FILTER ASM; OIL
496(A). 8973243861 [1] FILTER ASM; OIL
517. 1217291180 [1] PLUG; THERMOSTAT,OIL COOLER
518. 0280808160 [2] BOLT; PLUG,THERMOSTAT A M8X16 FLANGE
518. 0280508160 [2] BOLT; PLUG,THERMOSTAT M8X16 FLANGE
558. 1096050250 [2] PLUG; COVER,OIL PORT
560. 1131600350 [1] VALVE; RELIEF,OIL PORT COVER
